Day 2 — Network and Data Security

Today we move from identity to exposure.

Identity controls who can act. Network controls what is reachable.

The core question for today is:

What is reachable, what should be reachable, and what should be private?

---

The central teaching message

A service is not private because we call it "backend".
If it has a public URL, it is public.

This sounds obvious, but it is one of the most common mistakes in cloud architectures.

---

Day 2 architecture

Today we work with a four-layer application:

The internal backend service is the central object of today.

It exists to serve the public API.

It should not be reachable from the public internet.

---

Day 2 Setup

You can checkout the new source files using the following links:

Day 2 Demo App

Day 2 Infrastructure

Caution

The script requires that it's relative to the 2 repo's.

It also requires Powershell >7 to work, you can install the latest version of powershell using the info here: MS Docs Powershell 7.6.

Easiest method if winget is available:

winget install --id Microsoft.PowerShell --source winget

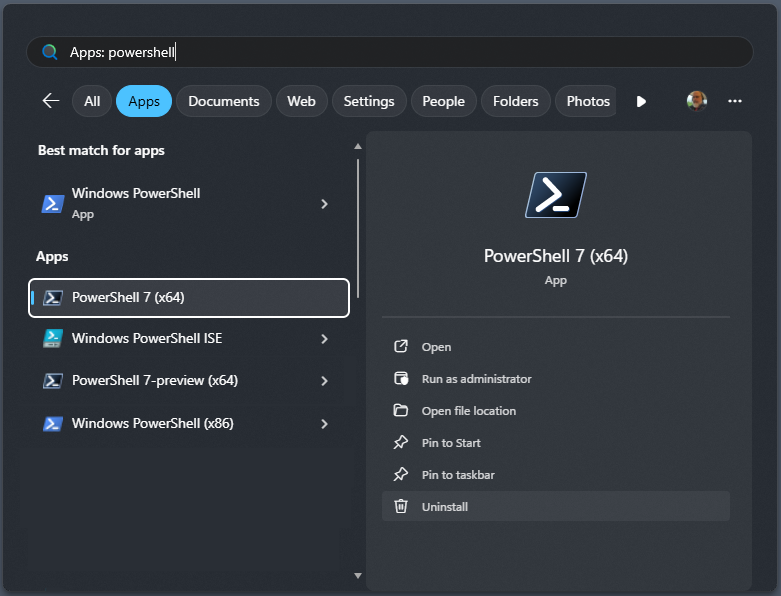

Figuur 0: Powershell 7 as seen in start menu

Make sure to start Powershell 7 and not regular powershell as they are co-existing.

Deployment Script

Place the deployment script in the parent folder of the Day 2 repositories. Save as e.g. deploy.ps1

#Requires -Version 7
<#
.SYNOPSIS
    Deploy Day 2 infrastructure and applications.

.DESCRIPTION
    1. Runs terraform init + apply in infrastructure/day-2
    2. Reads terraform outputs
    3. Builds and deploys the public backend API (App Service)
    4. Builds and deploys the internal backend service (App Service)
    5. Builds the frontend with the correct API URL and uploads to blob storage

.PARAMETER StudentPrefix
    Unique student prefix (3-12 lowercase letters/numbers). Passed as
    terraform var student_prefix. Must match what is in terraform.tfvars
    if that file already exists.

.PARAMETER Location
    Azure region. Default: westeurope

.PARAMETER Environment
    Environment name. Default: dev

.PARAMETER SkipInfra
    Skip terraform init/apply and read outputs from an already-deployed stack.

.PARAMETER SkipApps
    Run terraform only; skip all app builds and deployments.

.EXAMPLE
    .\scripts\deploy.ps1 -StudentPrefix jdoe

.EXAMPLE
    .\scripts\deploy.ps1 -StudentPrefix jdoe -SkipInfra

.NOTES
    Prerequisites
    - PowerShell 7+
    - Azure CLI (az)  logged in with `az login`
    - Terraform CLI
    - Node.js 20+
    - npm
#>

[CmdletBinding()]
param (
    [Parameter(Mandatory)]
    [ValidatePattern('^[a-z0-9]{3,12}$')]
    [string] $StudentPrefix,

    [string] $Location    = 'northeurope',
    [string] $Environment = 'dev',

    [switch] $SkipInfra,
    [switch] $SkipApps
)

Set-StrictMode -Version Latest
$ErrorActionPreference = 'Stop'



function Step([string]$msg) {
    Write-Host ''
    Write-Host "===> $msg" -ForegroundColor Cyan
}

function Info([string]$msg) {
    Write-Host "     $msg" -ForegroundColor Gray
}

function Bail([string]$msg) {
    Write-Host "ERROR: $msg" -ForegroundColor Red
    exit 1
}

function Require([string]$cmd) {
    if (-not (Get-Command $cmd -ErrorAction SilentlyContinue)) {
        Bail "'$cmd' is not installed or not on PATH."
    }
}

function Get-TerraformOutputValue([object]$outputsObj, [string]$name) {
    $propNames = @($outputsObj.PSObject.Properties.Name)
    if ($propNames -notcontains $name) {
        $available = ($propNames | Sort-Object) -join ', '
        Bail "Terraform output '$name' not found. Available outputs: $available. If you deployed previously, re-run without -SkipInfra so Terraform updates the stack and outputs."
    }

    return $outputsObj.$name.value
}



Require 'az'
Require 'terraform'
Require 'node'
Require 'npm'
Require 'zip'


$account = az account show 2>$null | ConvertFrom-Json
if (-not $account) {
    Bail "Not logged in to Azure CLI. Run: az login"
}
Info "Logged in as: $($account.user.name)  |  Subscription: $($account.name)"



$repoRoot    = $PSScriptRoot
$infraDir    = Join-Path $repoRoot 'day-2-infra'
$appsDir     = Join-Path $repoRoot 'course-cloud-security-demo-app/apps'
$backendDir  = Join-Path $appsDir  'backend'
$internalDir = Join-Path $appsDir  'backend-internal'
$frontendDir = Join-Path $appsDir  'frontend'
$tmpDir      = Join-Path ([System.IO.Path]::GetTempPath()) "cloudsec-deploy-$StudentPrefix"

Info "Repo root resolved to: $repoRoot"
Info "Infrastructure dir:    $infraDir"


if (-not (Test-Path $infraDir)) {
    Bail "Infrastructure directory not found: $infraDir. Ensure you run this script from the repo root or scripts/ directory."
}
if (-not (Test-Path $appsDir)) {
    Bail "Apps directory not found: $appsDir. Ensure the course-cloud-security-demo-app/ directory exists."
}



if (-not $SkipInfra) {
    $tfvarsPath = Join-Path $infraDir 'terraform.tfvars'

    # make sure tfvars file exists if not prompt to create it
    if (-not (Test-Path $tfvarsPath)) {

        # copy the example
        $examplePath = "$tfvarsPath.example"
        if (-not (Test-Path $examplePath)) {
            Bail "Example terraform.tfvars not found at $examplePath. Ensure you have the latest code and that the file exists."
        }
        Copy-Item $examplePath $tfvarsPath
        Write-Host "Created terraform.tfvars from example. Please review and update values as needed, then re-run the script." -ForegroundColor Yellow
        exit 0
    }

    Step 'Terraform: init'
    Push-Location $infraDir
    try {
        Info "Working directory: $(Get-Location)"
        Info "Terraform files:"
        Get-ChildItem -Filter '*.tf' | ForEach-Object { Info "  $($_.Name)" }

        terraform init -upgrade
        if ($LASTEXITCODE -ne 0) { Bail 'terraform init failed' }

        Step 'Terraform: apply'
        terraform apply `
            -auto-approve
        if ($LASTEXITCODE -ne 0) { Bail 'terraform apply failed' }
    }
    finally {
        Pop-Location
    }
}



Step 'Reading terraform outputs'
Push-Location $infraDir
try {
    $outputs = terraform output -json | ConvertFrom-Json
    if ($LASTEXITCODE -ne 0) { Bail 'terraform output failed' }
}
finally {
    Pop-Location
}

$resourceGroup         = $outputs.resource_group_name.value
$resourceGroup         = Get-TerraformOutputValue $outputs 'resource_group_name'
$publicBackendAppName  = Get-TerraformOutputValue $outputs 'public_backend_app_name'
$publicBackendUrl      = Get-TerraformOutputValue $outputs 'public_backend_url'
$internalAppName       = Get-TerraformOutputValue $outputs 'internal_backend_app_name'
$internalBackendUrl    = Get-TerraformOutputValue $outputs 'internal_backend_url'
$storageAccountName    = Get-TerraformOutputValue $outputs 'frontend_storage_account_name'
$dbStorageAccountName  = Get-TerraformOutputValue $outputs 'db_storage_account_name'
$frontendUrl           = Get-TerraformOutputValue $outputs 'frontend_url'

Info "Resource group        : $resourceGroup"
Info "Public backend app    : $publicBackendAppName"
Info "Public backend URL    : $publicBackendUrl"
Info "Internal backend app  : $internalAppName"
Info "Internal backend URL  : $internalBackendUrl"
Info "Frontend storage      : $storageAccountName"
Info "DB storage account    : $dbStorageAccountName"
Info "Frontend URL          : $frontendUrl"

if ($SkipApps) {
    Write-Host ''
    Write-Host 'SkipApps set  infrastructure done, exiting.' -ForegroundColor Yellow
    exit 0
}



if (Test-Path $tmpDir) { Remove-Item $tmpDir -Recurse -Force }
New-Item -ItemType Directory -Path $tmpDir | Out-Null



Step 'Public backend: npm install'
Push-Location $backendDir
try {
    npm install --prefer-offline
    if ($LASTEXITCODE -ne 0) { Bail 'npm install failed for backend' }

    Step 'Public backend: build (tsc)'
    npm run build
    if ($LASTEXITCODE -ne 0) { Bail 'npm run build failed for backend' }
}
finally {
    Pop-Location
}

Step 'Public backend: create zip'
$backendZip = Join-Path $tmpDir 'backend.zip'
Push-Location $backendDir
try {
    zip -r $backendZip src dist package.json package-lock.json tsconfig.json
    if ($LASTEXITCODE -ne 0) { Bail 'zip failed for backend' }
}
finally {
    Pop-Location
}

Step 'Public backend: deploy to App Service'
az webapp deploy `
    --resource-group $resourceGroup `
    --name          $publicBackendAppName `
    --src-path      $backendZip `
    --type          zip `
    --async         false
if ($LASTEXITCODE -ne 0) { Bail 'Deploy failed for public backend' }

Step 'Public backend: set startup command'
az webapp config set `
    --resource-group $resourceGroup `
    --name           $publicBackendAppName `
    --startup-file   'node dist/index.js'
if ($LASTEXITCODE -ne 0) { Bail 'Failed to set startup command for public backend' }



Step 'Internal backend: npm install'
Push-Location $internalDir
try {
    npm install --prefer-offline
    if ($LASTEXITCODE -ne 0) { Bail 'npm install failed for backend-internal' }

    Step 'Internal backend: build (tsc)'
    npm run build
    if ($LASTEXITCODE -ne 0) { Bail 'npm run build failed for backend-internal' }
}
finally {
    Pop-Location
}

Step 'Internal backend: create zip'
$internalZip = Join-Path $tmpDir 'backend-internal.zip'
Push-Location $internalDir
try {
    $zipItems = @('src', 'dist', 'package.json', 'tsconfig.json')
    if (Test-Path 'package-lock.json') { $zipItems += 'package-lock.json' }
    zip -r $internalZip $zipItems
    if ($LASTEXITCODE -ne 0) { Bail 'zip failed for backend-internal' }
}
finally {
    Pop-Location
}

Step 'Internal backend: deploy to App Service'
az webapp deploy `
    --resource-group $resourceGroup `
    --name          $internalAppName `
    --src-path      $internalZip `
    --type          zip `
    --async         false
if ($LASTEXITCODE -ne 0) { Bail 'Deploy failed for internal backend' }

Step 'Internal backend: set startup command'
az webapp config set `
    --resource-group $resourceGroup `
    --name           $internalAppName `
    --startup-file   'node dist/index.js'
if ($LASTEXITCODE -ne 0) { Bail 'Failed to set startup command for internal backend' }



Step 'Frontend: npm install'
Push-Location $frontendDir
try {
    npm install --prefer-offline
    if ($LASTEXITCODE -ne 0) { Bail 'npm install failed for frontend' }

    Step "Frontend: build  (VITE_API_BASE_URL=$publicBackendUrl)"
    $env:VITE_API_BASE_URL = $publicBackendUrl
    npm run build
    if ($LASTEXITCODE -ne 0) { Bail 'npm run build failed for frontend' }
}
finally {
    # Clean up env var regardless of success/failure
    Remove-Item Env:VITE_API_BASE_URL -ErrorAction SilentlyContinue
    Pop-Location
}

Step 'Frontend: upload to blob storage ($web container)'
az storage blob upload-batch `
    --account-name $storageAccountName `
    --destination  '$web' `
    --source       (Join-Path $frontendDir 'dist') `
    --overwrite
if ($LASTEXITCODE -ne 0) { Bail 'Frontend upload to blob storage failed' }



Step 'Smoke tests'

function Test-Endpoint([string]$label, [string]$url) {
    Info "GET $url"
    $response = az rest --method get --url $url --output json 2>$null
    if ($LASTEXITCODE -eq 0) {
        Write-Host "     [OK]  $label" -ForegroundColor Green
    } else {
        Write-Host "     [FAIL] $label  app may still be starting up" -ForegroundColor Yellow
    }
}


Start-Sleep -Seconds 10

Test-Endpoint 'Public backend /api/health'   "$publicBackendUrl/api/health"
Test-Endpoint 'Public backend /api/security/secret-demo'   "$publicBackendUrl/api/security/secret-demo"
Test-Endpoint 'Internal backend /internal/health' "$internalBackendUrl/internal/health"



Write-Host ''
Write-Host '====================================================' -ForegroundColor Green
Write-Host ' Deployment complete' -ForegroundColor Green
Write-Host '====================================================' -ForegroundColor Green
Write-Host ''
Write-Host "  Frontend          : $frontendUrl"
Write-Host "  Public backend    : $publicBackendUrl"
Write-Host "  Internal backend  : $internalBackendUrl"
Write-Host "  DB storage account: $dbStorageAccountName"
Write-Host ''
Write-Host 'Temp artifacts written to:' -ForegroundColor Gray
Write-Host "  $tmpDir" -ForegroundColor Gray
Write-Host ''

Azure Storage Explorer

You will also need Azure Storage Explorer as a DBMS for Azure Storage Tables. You can download and install it from: Download Link

Day 2 storyline

Today we follow one security improvement cycle.

The goal is not only to find an exposed service.

The goal is to understand why it is exposed, demonstrate the risk, reduce the exposure, and prove the fix worked.

---

What we start with

At the beginning of Day 2, the environment has these intentional misconfigurations:

Component	State	Problem?
Frontend	Public	Expected
Public Backend API	Public	Expected
Internal Backend Service	Public	Problem
DB Storage Account	Public network access enabled	Problem
Key Vault	Public network access enabled	Problem

---

What we work toward

By the end of Day 2, the environment should look like this:

Component	State
Frontend	Public	Unchanged
Public Backend API	Public (HTTPS enforced)	Hardened
Internal Backend Service	Reachable only by Public Backend API	Fixed
DB Storage Account	Reachable only through private path	Fixed
Key Vault	Reachable only through private path	Fixed

---

Day 2 labs

Lab	Focus
Lab 2.1	Map public and internal exposure
Lab 2.2	Demonstrate internal backend exposure
Lab 2.3	Segment the internal backend
Lab 2.4	Protect the data layer (Table Storage)
Lab 2.5	Protect the data layer (Key Vault)
Lab 2.6	NSG rules
Optional 2.x	Bastion management path

---

Teaching rhythm

The same rhythm as Day 1 applies:

short theory
→ lab
→ recap
→ next short theory
→ lab
→ recap

Each theory block gives just enough context to start the next lab.
