In Lab 2.4 you disabled public network access on the DB storage account. Only resources inside the VNet can now reach it through the private endpoint.

A common concern after locking down a database is: how do administrators access it for troubleshooting or maintenance?

This optional lab answers that question by demonstrating the Azure Bastion management path.

What Azure Bastion is

Azure Bastion provides browser-based SSH and RDP access to virtual machines inside a VNet.

The connection goes through the Azure Portal over HTTPS. The VM does not need a public IP address. No inbound SSH or RDP port needs to be open to the internet.

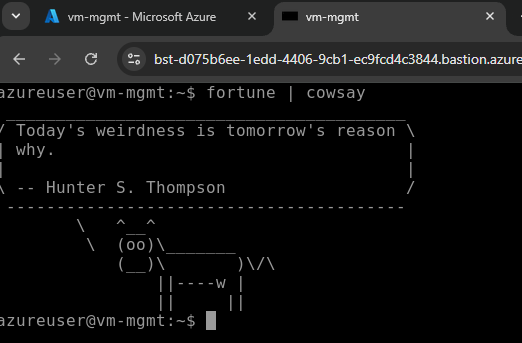

Figuur 0: Azure Bastion connection — browser-based terminal session to VM without public IP

How this differs from a public SSH port

Traditional approach:

1. VM has a public IP address
2. NSG allows inbound SSH on port 22 from the internet
3. Admin SSH client connects directly to the public IP
4. Risk: SSH port exposed to brute-force attacks, credential stuffing

Azure Bastion approach:

1. VM has no public IP address
2. NSG allows inbound SSH/RDP only from the AzureBastionSubnet (10.0.10.0/27)
3. Admin connects via Azure Portal HTTPS
4. Bastion brokers the connection inside the VNet
5. Benefit: no SSH/RDP port exposed to the internet

The management path

Once connected to a management VM via Bastion, the VM can access private resources inside the VNet:

Key insight: Bastion is not used to access the DB storage account directly. Bastion is used to access a VM inside the VNet. That VM can then reach private resources.

Why NSG rules must allow Bastion traffic

The management VM subnet has an NSG attached (nsg-snet-private-endpoints). By default, NSGs block most inbound traffic.

For Bastion to reach the VM, the NSG must allow inbound SSH (port 22) or RDP (port 3389) from the AzureBastionSubnet CIDR (10.0.10.0/27).

NSG rule on nsg-snet-private-endpoints:

Source: 10.0.10.0/27 (AzureBastionSubnet)
Destination: 10.0.2.0/24 (private endpoints subnet)
Ports: 22, 3389
Action: Allow

Without this rule, Bastion connections fail even though Bastion itself is deployed and the connection shows "Connecting..." in the Portal.

Private DNS resolution inside the VNet

When the management VM queries the DB storage account hostname, DNS resolution behaves differently than from your laptop:

Location	DNS query for `stdb...table.core.windows.net`	Result
Your laptop	Public DNS	Public IP (unreachable if public access disabled)
Management VM inside VNet	Azure Private DNS	Private IP `10.0.2.x`

This is why the VM can reach the private endpoint even when public access is disabled.

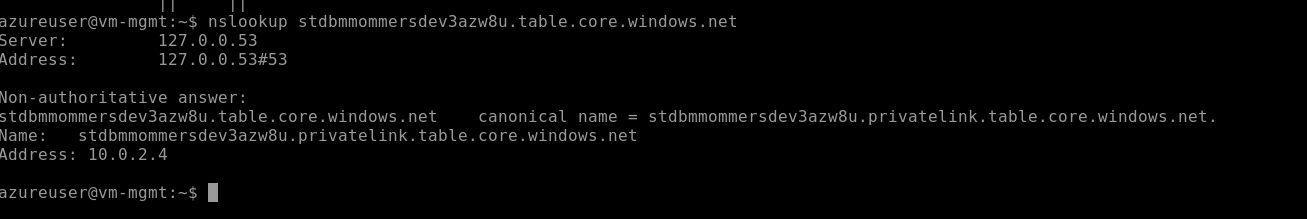

Figuur 0: Private DNS zone linked to VNet — A record resolves storage hostname to private IP

Managed identity for credential-free authentication

In Lab 2.x you will enable a system-assigned managed identity on the management VM. This allows the VM to authenticate to Azure services without storing credentials.

Traditional approach:
1. Create a service principal
2. Generate a client secret
3. Store the secret on the VM
4. Risk: credential theft, rotation burden

Managed identity approach:
1. Enable managed identity on the VM
2. Grant the identity RBAC permissions
3. VM uses az login --identity
4. Benefit: no credentials to manage or steal

The managed identity in this lab gets the Storage Table Data Reader role on the DB storage account. This allows the VM to query tables using the Azure CLI — without a connection string, access key, or SAS token.

Bastion SKUs

SKU	Cost	Features
Basic	~$0.19/hour	Browser-based SSH/RDP only
Standard	~$0.19/hour	Basic + tunneling for automation, shareable links, custom port support

The hourly cost is the same. Standard SKU enables az network bastion tunnel for SSH/RDP over the Azure CLI — useful for automation and scripting.

What this lab demonstrates

Lab 2.x checklist

Azure Bastion deployed in AzureBastionSubnet with no VM public IPs required
NSG rule on the private endpoints subnet allows inbound from Bastion subnet CIDR (10.0.10.0/27)
Browser-based terminal connection to management VM via Azure Portal
DNS resolution inside the VNet returns private IPs for storage and Key Vault
TCP connectivity test proves network path to private endpoints works
System-assigned managed identity enabled on VM with Storage Table Data Reader role
Azure CLI queries Table Storage using az login --identity without stored credentials
Optional: Bastion tunnel (Standard SKU) demonstrates SSH via localhost for automation

Check before starting

Why is Azure Bastion more secure than opening SSH port 22 to the internet?
What subnet CIDR must be used as the source in the NSG rule for Bastion connectivity?
Why does the management VM need a managed identity to query Table Storage?
What DNS zone resolves the storage account hostname to a private IP?
